Cold Plunge

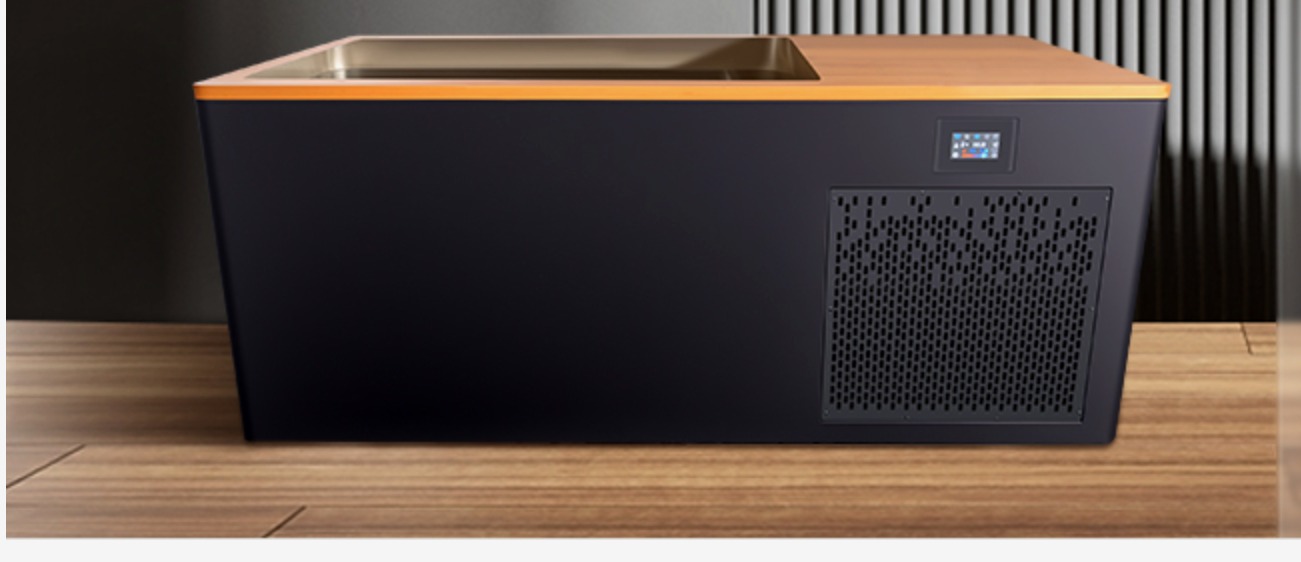

All-In-One Cedar Cold Plunge TubIntegrated Elite chiller. Nothing bolted on.
Industrial-grade chilling, heating and filtration built directly into the chassis, wrapped in Canadian White Cedar over a 3 mm stainless liner. Level it, fill it, plug it in — from 34°F plunges to 113°F soaks on one dedicated circuit.
Engineering
One chassis, everything inside
True plug-and-play
Chiller, pump and filtration are pre-wired inside the frame. No external hoses, no PVC gluing, no plumbing contractor.
Elite engine, 2 HP
28,577 BTU with an oversized pure titanium heat exchanger — 7–8°C per hour drawdown in a 200 L volume at 20°C ambient.
1°C to 45°C
Cool to 34°F for plunges or heat to 113°F for a warm soak, all from the same touchscreen or the mobile app.
3-stage filtration + ozone
Washable pre-filter, 20-micron pleated main filter, and a programmable in-line ozone sterilization cycle.
Double-layer insulation
High-density polyurethane foam between the stainless liner and exterior shell holds temperature and cuts power draw.
Flow protection
A water flow switch shuts down the compressor and pump on low level or filter blockage, protecting the heat exchanger.
Materials
Material architecture
Inner liner
304 or 316 stainless steel, 3 mm
Upgrade to marine-grade 316 for commercial sanitization environments. Zero plastic leaching.
Structural framework
Galvanized steel / stainless steel
Heavy-duty hidden skeleton with anti-rust powder coating against condensation and outdoor moisture.

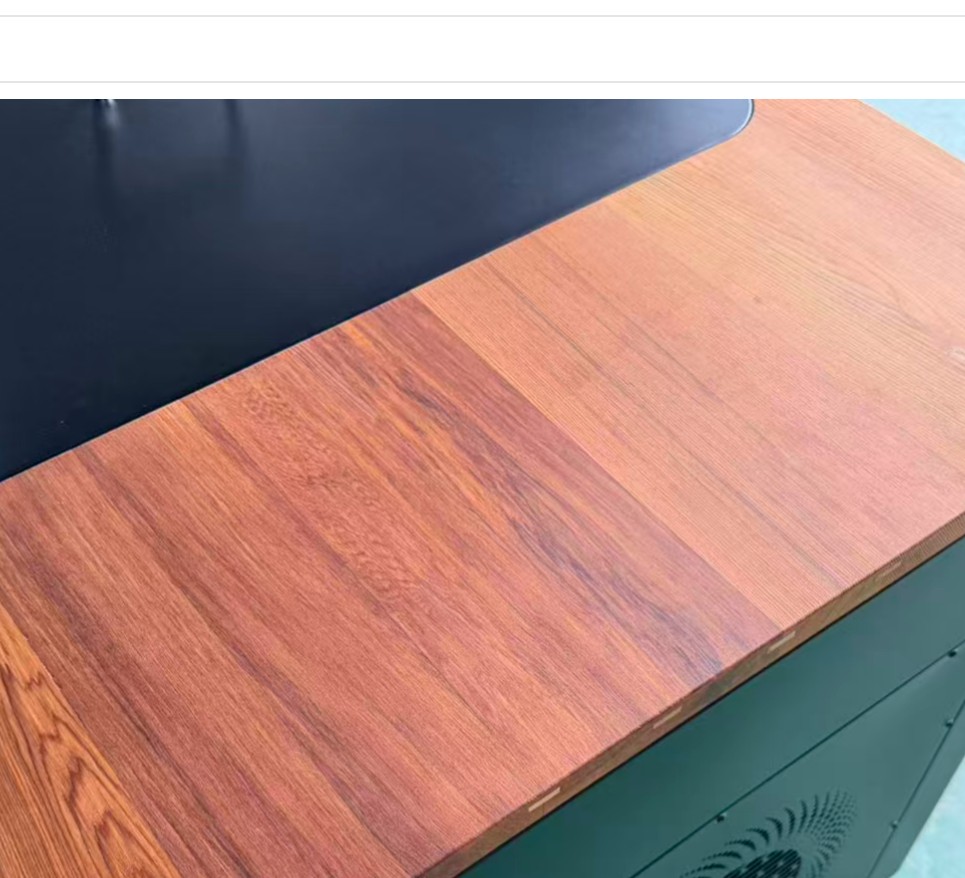

Cladding & cover
Canadian White Cedar (or black steel)
Naturally resistant to decay, moisture and insects. The matching cover is fully insulated.
Specifications
Dimensions & technical parameters
| Model | 888-AIO-2000-CTB |
| Overall dimensions (L × W × H) | 1800 × 900 × 650 mm (70.9" × 35.4" × 25.6"), excluding wheels |

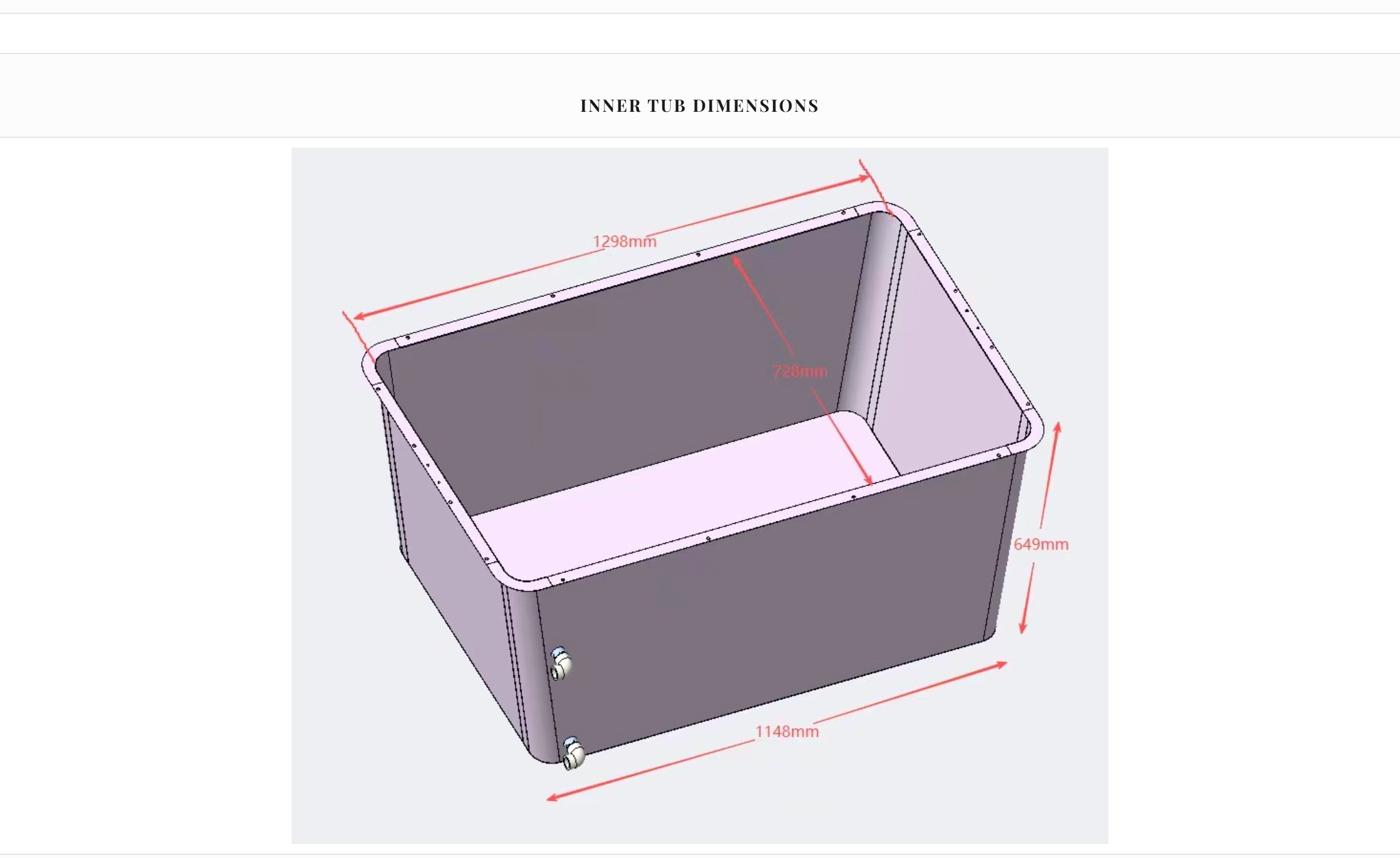

| Inner tub dimensions | 1298 × 728 × 649 mm (51.1" × 28.7" × 25.6") |
| Weight (empty) | 220 kg / 485 lbs |
| Weight (filled) | ~650 kg / 1,433 lbs |
| Water capacity | 370 L operating, up to 570 L maximum |
| Floor load requirement | 900 kg / 2,000 lbs minimum |
| Power | 110V / 60Hz or 220V / 50Hz, 15A minimum |
| Breaker | 20A dedicated circuit, GFCI required on 110V |
| Chiller engine | 2 HP Elite Series |
| Cooling capacity | 28,577 BTU (tested at 20°C ambient) |
| Power consumption | 2,700 W while cooling |
| Temperature range | 1°C – 45°C (34°F – 113°F) |
| Cooling velocity | 7–8°C per hour |
| IP rating | IPX4, indoor or outdoor |
| Connectivity | Wi-Fi (2.4 GHz) with mobile app and timer scheduling |
| Warranty | One year, free replacement parts |
Site preparation
Before delivery
Fan exhaust side
1.0 m minimum clearance
All other sides
0.5 m minimum clearance
Surface
Perfectly level, rated for 900 kg
Drainage
Side drainage port; plan access for a full 370 L dump
Do not install in an enclosed space or in a basement without immediate drainage access. Use a dedicated breaker and a GFCI, and never add extensions to the supplied GFCI cord. Below 1°C / 34°F ambient, either run the unit in heating mode continuously or drain the system completely.
FAQs
Cold plunge, answered
Installation, water care, safety and warranty. Our concierge team can walk you through anything else before you order.
